Analyzing System Behavior and Performance Using the Linux Trace Toolkit

  1. Introduction
  2. Architecture
  3. Impact
  4. Usage
  5. Examples
    1. Understanding Process Behavior
    2. Performance Analysis of a Process
    3. Understanding System Behavior
    4. Performance Analysis of a System
    5. Solving Synchronization Problems
  6. Future Directions and Conclusion

1. Introduction

Conventional performance measurement tools provide the user with only a glimpse of the system's behavior. They rarely enable him to get a complete understanding of the system's dynamics.

LTT fills this gap by providing its user with all the required information to reconstruct a system's behavior during a certain period of time. By doing so, some previously difficult situations can easily be resolved. For instance, it will help the user answer some of the usually tough questions:

  • Why do certain synchronization problems occur?
  • Overall, where do all the applications spend their time?
  • What happens to an application and its children when it receives a packet?
  • Where are the I/O latencies in a given application?

Moreover, LTT is open-source and distributed under the GNU GPL license. This availability eases customization and promotes extensibility. LTT is available through it's home page at: www.opersys.com/LTT.


2. Architecture

LTT can report the following events with their details with microsecond precision:

  • System call (entry and exit)
  • Trap (entry and exit)
  • Interrupt (entry and exit)
  • Scheduling change
  • Kernel timer
  • Bottom halves
  • Process management
  • File system management
  • Timer management
  • Memory management
  • System V IPC
  • Socket communication
  • Network management

In order to provide a high degree of detail without hindering system operation or performance, LTT is composed of 4 parts:

  • Instrumented kernel
  • Data collection module
  • Data committing daemon
  • Data presentation and analysis software

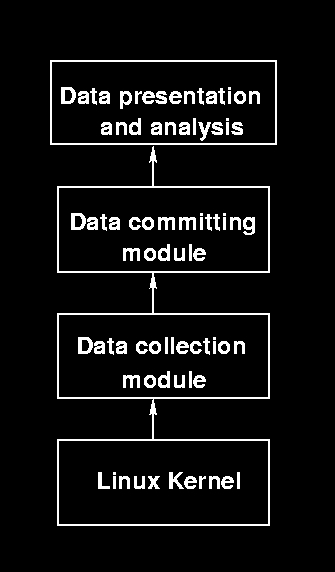

The first three components take part in the data collection and the last component is used for data presentation. These components interact in the following manner:

Correspondingly, the LTT package is mainly composed of the following items:

  • Kernel patch (Instrumented kernel + Data collection module)
  • TraceDaemon (Data committing daemon)
  • TraceToolkit (Data presentation and analysis software)

Once the patch is applied to the corresponding kernel and the system rebooted with the new kernel, data collection can be activated.


3. Impact

Given its high degree of precision it would be expected that LTT would bear a high cost in system performance. That is not the case. Practical tests have shown that when tracing core kernel events the impact remains lower than 2.5%.

On the other hand, the size of the generated traces can be large. Tracing a system on which a GUI such as KDE or Gnome is running can yield 0.5MB of trace per second. A "plain" system will typically yield less than 0.1MB of trace per second. The size of the traces can be greatly reduced by tracing only the events necessary to the underlying analysis.


4. Usage

To generate a trace, the system must be running a patched kernel. To start tracing, the trace daemon is launched with the appropriate options. Here is an example trace daemon launch command:
TraceDaemon /dev/tracer out.trace out.proc

In order to facilitate the usage of the trace daemon, some scripts are provided. The following command line is an example usage of such a script:
trace 30 out

Once the trace is generated, it can be viewed using the data decoder. The following is a sample command line to start the data decoding front-end:
TraceToolkit -g out.trace out.proc

Here again, scripts are provided to facilitate common usage. For example:
traceview out

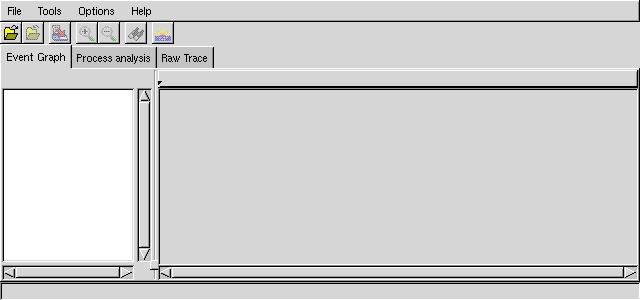

Both commands will lead to the display of the following interface:

The data decoder can also be used as a command-line utility only. This enables trace analysis without the burden of a GUI.


5. Examples

The following examples illustrate the usage of LTT in resolving and/or understanding real-world situations.

5.1. Understanding Process Behavior

Understanding exact process behavior is often difficult. Interactions with the OS are often opaque. LTT gives us an insight on how a process interacts with the OS.

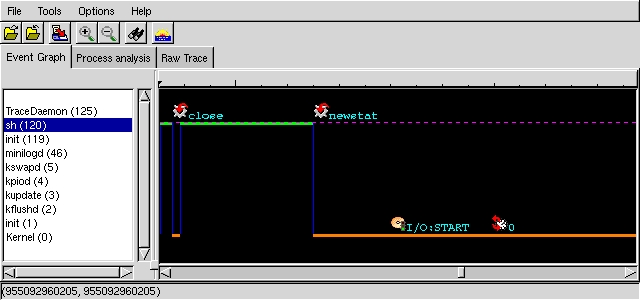

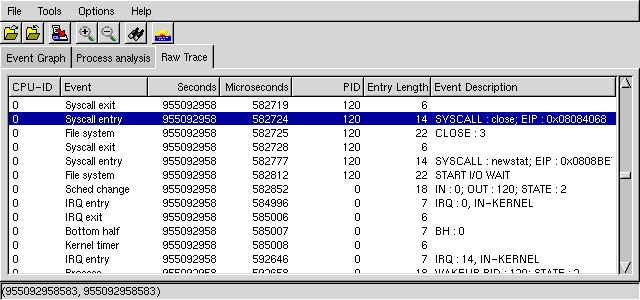

In a raw form, the information displayed in the graph is as follows:

5.2. Performance Analysis of a Process

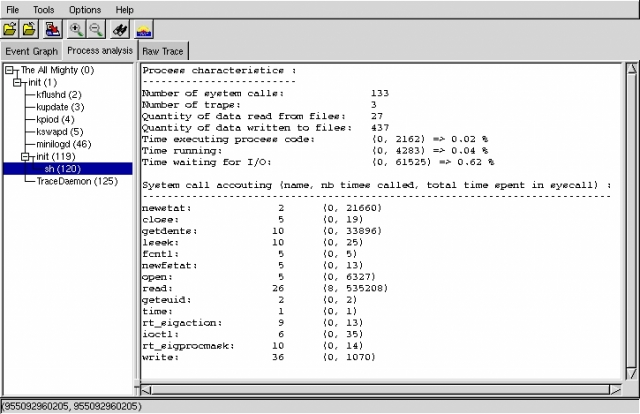

We can also get detailed performance measures on the observed process:

5.3. Understanding System Behavior

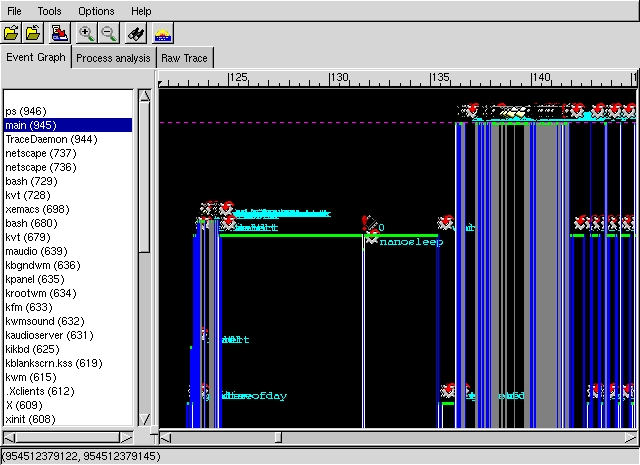

Here we can see the system reacting to the user pressing on the keyboard while the focus is on a command-line application called "main":

5.4. Performance Analysis of a System

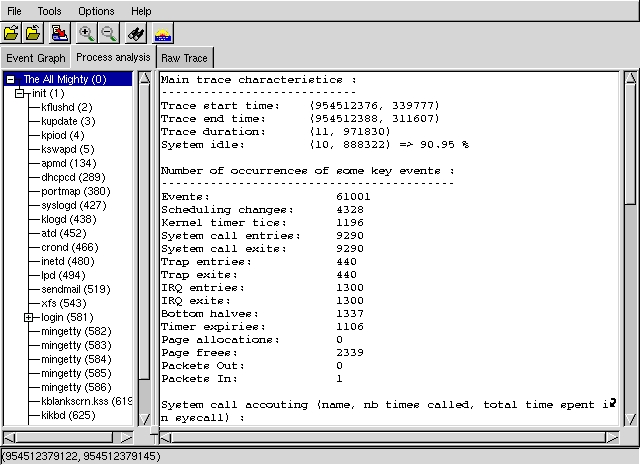

Here we see system-wide performance data which includes items unavailable through conventional tools:

5.5. Solving Synchronization Problems

Synchronization problems are hard to solve. Take for instance this portion of code:

#include <stdio.h>
FILE* file_id;
void write_to_file(int id)
{
  while(1)
    {
    fprintf(file_id, "%d:Hello", id); fflush(file_id);
    sleep(0.5); /* Force the process to give up the CPU */
    fprintf(file_id, " %d:World!", id); fflush(file_id);
    }
}
int main(void)
{
  int i;
  file_id = fopen("hello.txt","w");
  if(!fork())
    write_to_file(1);
  else
    if(!fork())
      write_to_file(2);
  while(1);
}


This will always output something in the form:
1:Hello 2:World!2:Hello 1:World!1:Hello

We would want it to print:
1:Hello 1:World!2:Hello 2:World!1:Hello

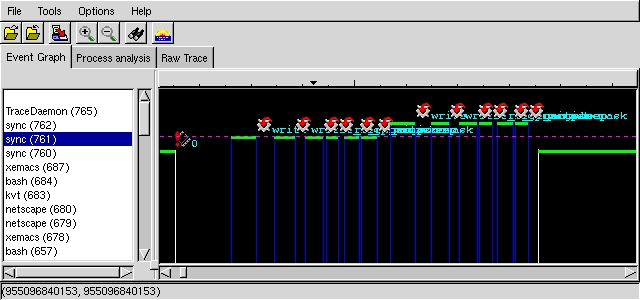

Using LTT, we get the following graph:

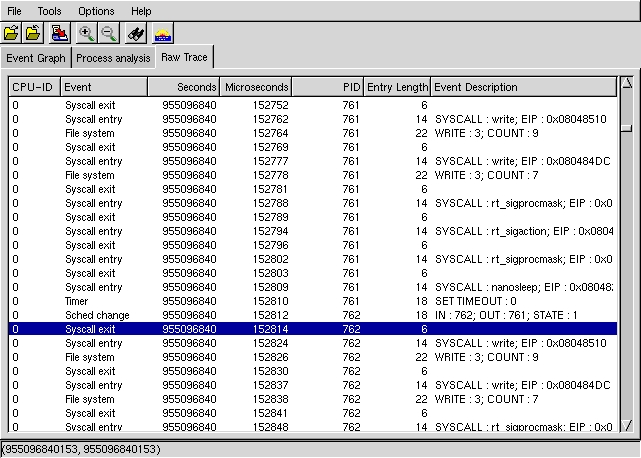

In the raw form, the events are as follows:



6. Future Directions and Conclusion

LTT has been available for some time and has matured into an industrial-strength utility for performance analysis and characterization. Nonetheless, it is an ongoing project and the following is a non-exhaustive to-add list:

  • Trace support for Linux Real-Time derivatives (RTAI and NMT-RTLinux)
  • Deeper analysis of traces
  • Correlation of traces with data provided by conventional tools.
  • User-side events
  • Front-end enhancements
  • Dynamic creation of event IDs
  • Event triggers for help in Intrusion Detection

As the complexity of software and hardware increases, LTT will provide developers with a versatile tool to deal with the different problems encountered.
